November 4th 2009
Almost
a year after I received the first kit, and with the help
of friend Paul and his home track we set about lighting the fire
for the first time. As pressure rose, we discovered various
leaks, notably from the gauge glass where I had not tightened the nuts
enough, around the regulator packing nut where I had not put enough
graphite yarn in, and the blower valve which persisted in leaking steam
around the packing nut.
Having attended to the leaks as best
we could, the first job was to watch the pressure gauge closely so that
we could set the safety valve to lift at 90psi. That done, it was
time to open the draincocks, put it into forward gear and open the
regulator to see if it would move. After a few tentative movements back
and forth to clear condensate, she seemed ready to go. Coupled up
the driving trolley and I was carefully away on my first trip.
What
a great feeling! To realise that I had built this from
several boxes of bits and it actually ran as it should. Nice even
exhaust beat, plenty of steam, nice smooth controllable power,
axle pump providing plenty of water. All in all a credit to Geelig
the designer and to Andy for making the bits! As you can guess I
was feeling very pleased indeed.

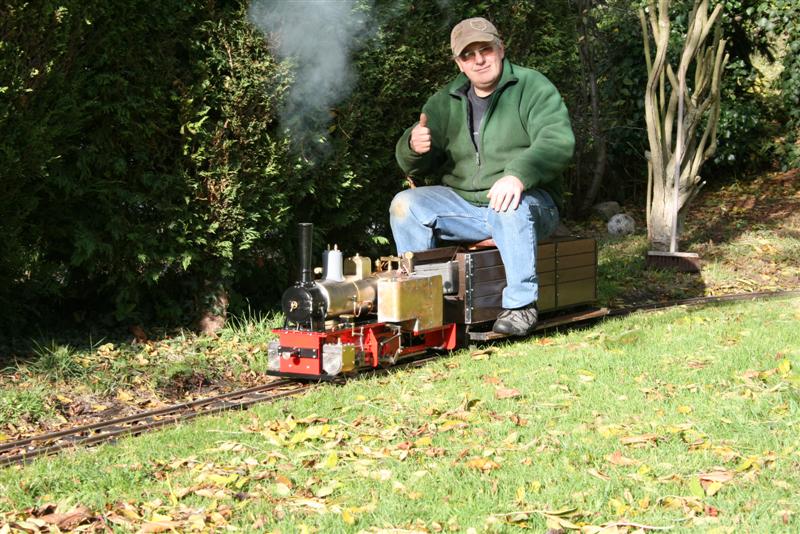

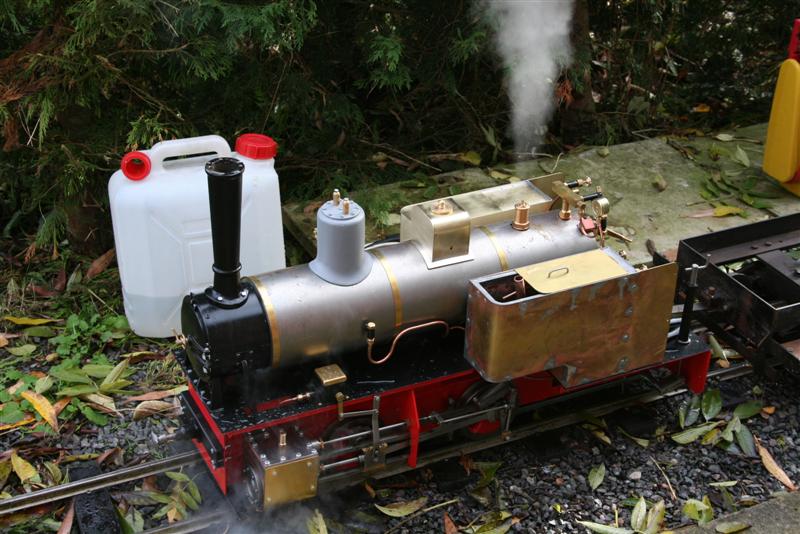

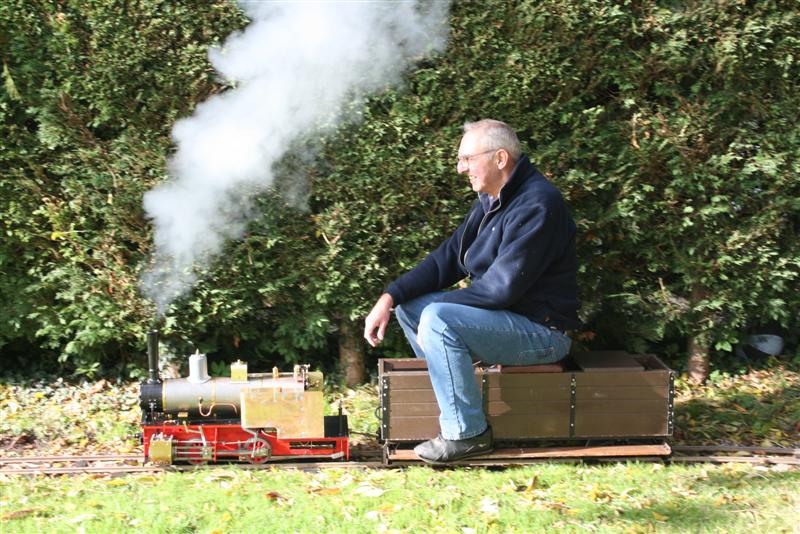

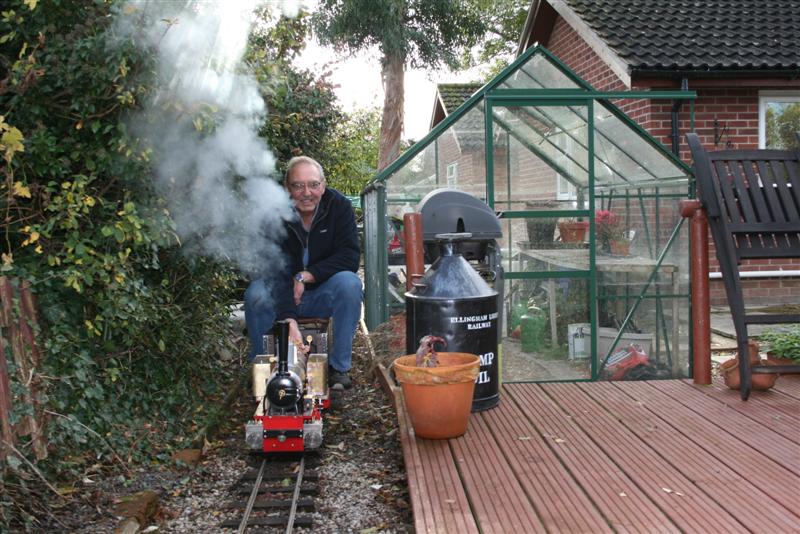

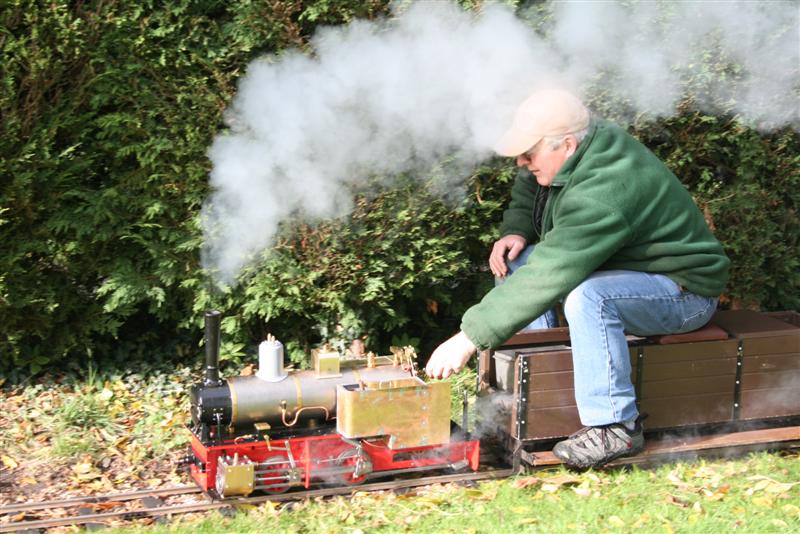

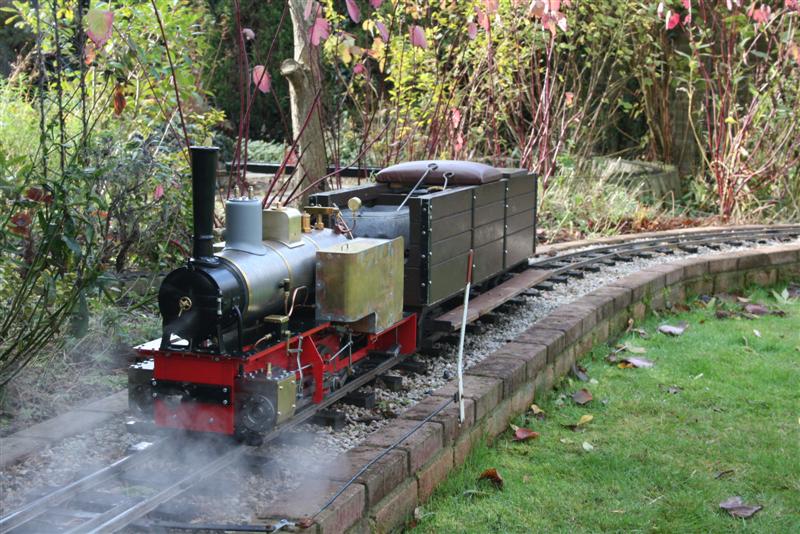

Paul and I took it in
turns driving for about an hour or so, taking photos as we went.
Below is a selection to give you an idea of how she ran.
Now here is a
warning
for you. When we had finished running, we dropped the fire,
opened the boiler drain down and went for a cuppa (as you do).
When we came back to put the engine in the car, it seemed a
bit stiff but we thought nothing of it at the time. By the time I
got home it had seized solid and the wheels would not turn at all.
Subsequently, after talking with Andy, I discovered that
the pistons had indeed seized in the cylinders through rust. Apparently
I should have pumped oil through the snifter valves into the
cylinders while they were still warm, worked the engine back and forth
with the draincocks open until oil came out, then closed the
draincocks. This is especially important with a new engine as it is
still very tight generally.
After pumping some oil in and with
some robust pushing and shoving, the wheels began to go round again.
Hopefully there won't be any lasting damage but a lesson well learnt!
Don't make the same mistake that I did!
November 9th
Took
the engine to our club on Sunday and it ran well until we found it was
using hardly any oil! Investigation revealed that the operating
arc on the oil pump is quite narrow and falls between 4 and 6 o'clock.
After disconnecting the pump lever from the crosshead, we
could get oil from the pump if we used a wide arc lever movement, but
in its usual operating arc there didn't seem to be anything coming out.
Suddenly realised that that was the most likely cause of the
seizure after the first run! Played around with the pump
adjustment until we ended up with the distance from the backnut to the
end of the threaded pump body at about 13mm and it now pumps lots of
oil. See under August 4th in
Kit 6 for further details of how to set up the oil pump.
